Atlas Lights - Standard Corrugated

sold out

Atlas Lights - Standard Corrugated

from $310.00

Add drama and interest to your favorite room! These pendants provide plenty of accent light and unique shadow play off nearby walls, objects, and surfaces.

Includes three spherical corrugated cardboard luminaries with genuine Feit Electric Vintage Style 4W (60W Equivalent) LED Edison Bulbs, black fabric covered wire, black phenolic bulb receptacles, and standard three-prong plugs on each termination end.

Shade Sizes:

Small: 6in

Medium: 8in

Large: 10in

Product Details:

Finish: Natural Cardboard Color
Mounting: 6' Black Fabric Cord
Number of Sockets: 1 per fixture
Max Wattage: Type-A, 60w Standard Incandescent
Use: Socket UL Listed File No. E193434
Manufactured in the U.S.A. This light fixture is made-to-order to suit your custom specifications. Contact us directly for custom variants not listed here.
See below for additional product information.

Cord Length:

Termination:

Three Prong Plug 3-Port Ceiling Canopy H-Style Track Light No Termination

Add To Cart

Socket Information

High Quality Injection Moulded Socket Assembly, with Ground Wire Termination

Phenolic black plastic socket for 3-conductor cord
Threaded ring to hold shades
Removable Lamp Shade Ring inner-diameter: 1-1/2" outer-diameter: 2-3/16"
Length: 2", Length of threads: 3/4"
UL Listed File No. E193434
Max bulb: Type A 60W (not included)
Interior use only

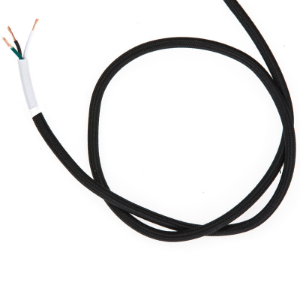

Wire Information

Insulation cover and jacket are Thermoplastic material
Braided rayon cloth covered insulated 3-conductor wire cord
Rated Voltage: 300V Size: AWG18
Insulation Thickness: 0.38mm
Jacket Thickness: 0.76mm
overall cord with jacket diameter: approx. 1/4"
Max Weight Load: 2.30 kgs (5.5 lbs)
UL Listed Textile Braided Wire, Type SVT-B File No. ZJCZ.E471255
Interior Use Only

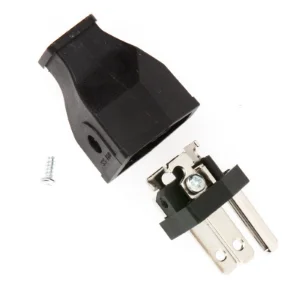

Three-Prong Plug Information (Optional)

2-3/8" x 1-1/4" long
Black plastic 3-prong plug
Grounded
120VAC

H-Style Track Light Connector Information (Optional)

Track Type 3-Wire
Track Style H-Style
Compatible with: Cooper, Glomar, Halo, Hampton Bay
Application Track lighting, pendant lighting
Circuits Single
Material Plastic
Max Watts 75
Voltage Type Line Voltage (120Volt)
Dimensions H x W x L (in) 2.5 x 1.25 x 1.25

Port Ceiling Canopy Information (Optional)

Round metal 3-port ceiling canopy with built-in strain reliefs
High quality black paint finish
3 ports for wiring cord to any length
5” in diameter, 7/8” tall and 3/4” tall stem
Canopy is secured with two side screws, leaving a clean minimalistic bottom surface.
Included: Canopy, Mounting Plate, Canopy screws (2) Mounting Screws (2), Wire Connectors (3)
Assembly required to meet your finished length specifications

Flammability

All of the corrugated lights manufactured by Detroit Laser Company are treated with a Flamex fire retardant chemical after laser cutting. Remember that nothing is flame proof; anything will burn if it gets hot enough. Most fire retardants - including the type used by DLC - do not prevent a material from igniting and burning. The goal of fire retardant treatment is to retard ignition and slow the spread of fire. Flamex works in two ways to achieve this - raising the ignition temperature of the treated material and retarding the production of flame. When burned, materials treated with Flamex produces inert gases which starve the fire of oxygen and also develop a non-combustible char. The corrugated fixture may ignite if exposed to flame, but will self-extinguish within two seconds after the flame has been withdrawn.

Installation

Please consult a licensed electrician if you need assistance in wiring and installation of any device or fixture.
